CUTLER-HAMMER SVX020A1-A1B1 Ac Drive SVX020A1-4A1B1

( Brand: Cutler-hammer ), ( Part Type: Ac Hp Drive ), ( Manufacturer Part Number: SVX020A1-A1B1 )

Review CUTLER HAMMER Hp Ac Drive

The Cutler-Hammer SVX020A1-A1B1 and SVX020A1-4A1B1 20 AC Drives are industrial-grade motor control solutions offered by Cutler-Hammer, a brand known for its reliability and advanced technology. These variable frequency drives (VFDs) are designed to provide efficient and precise motor control for a wide range of applications, from pumps and fans to conveyors and compressors.

The SVX020A1-A1B1 and SVX020A1-4A1B1 are compact, multi-functional drives that can handle motor ratings from 0.25 to 20 horsepower. They come with a built-in auxiliary contact relay and an optional encoder input that expands their functionality for various applications. This versatile design not only simplifies installation but also reduces system complexity and overall cost.

1. Enclosure: The drives come with an IP20 open-frame design that provides increased flexibility for mounting arrangements and allows for easy access for maintenance.

2. Control: These drives offer auto-tuning capabilities, automatic shutdowns, and overvoltage/undervoltage protection. Users can easily select their application type and motor type using simple, straightforward menu screens, requiring no extensive programming knowledge or external tools. Some of the available application types include pumping, fan, and general-purpose drive applications.

3. Energy savings and efficiency: Both drives feature adjustable speed and torque control, making it possible to minimize energy usage when a motor is operating below full load. Additionally, their adjustable horsepower management ensures that the drives can maintain motor performance under varying load conditions.

4. Connectivity: The Cutler-Hammer SVX020 series drives provide effective communication options to allow seamless integration into automation systems, including support for MODBUS, PROFIBUS, and DeviceNet. Connectivity options also include 0-10V Analog, RS-485, RS-232, and Ethernet communications, ensuring compatibility with various control systems and network architectures.

5. Protection: The SVX020 series drives come with a variety of protective features, such as overcurrent protection, overvoltage/undervoltage protection, overtemperature protection, and short-circuit protection. This ensures that the motor and the drive itself remain protected under varied and sometimes challenging operating conditions.

In summary, the Cutler-Hammer SVX020A1-A1B1 and SVX020A1-4A1B1 20 AC Drives are essential components for industrial applications requiring efficient, precise, and versatile motor control. Their user-friendly design, reliable performance, and broad functionality offer significant advantages to operators, maintenance personnel, and system integrators.

Pros and Cons of Buying Cutler-Hammer SVX020A1-A1B1 and SVX020A1-4A1B1 20 AC Drives

The Cutler-Hammer SVX020A1-A1B1 and SVX020A1-4A1B1 are variable speed drives (VSDs) manufactured by Eaton (formerly Cutler-Hammer), an established brand in power management solutions. These drives support 20 amps, making them suitable for smaller industrial applications. In this analysis, we will weigh the advantages and disadvantages to assist you in making an informed decision about purchasing the Cutler-Hammer SVX020A1-A1B1 or SVX020A1-4A1B1 20 AC Drives.

1. Energy Savings: These drives offer energy efficiency through adjusting motor speed in accordance with the required demand, reducing energy consumption versus fixed-speed motors.

2. Smooth Torque Control: Variable speed drives offer smooth torque control, allowing the user to manage the start and stop of the motor, resulting in less stress and wear on the system components.

3. Quieter Operation: The drives reduce the overall noise generated by motor operations since they offer soft, smooth acceleration and deceleration.

4. Versatility: The drives can be used in various applications, including fans, pumps, compressors, conveyors, and hoists.

5. Protection: The drives are equipped with protection functions such as overload, over voltage, under voltage, and over current protection, ensuring optimal motor performance and increased system longevity.

6. Digital Communication: They support digital communication protocols including Modbus and DeviceNet, enabling data exchange with supervisory control and data acquisition (SCADA) systems.

1. Cost: Variable speed drives tend to be more expensive compared to fixed-speed motor systems; however, the long-term savings from energy efficiency and reduced maintenance could offset the initial investment.

2. Complex Installation: Proper wiring and connection procedures need to be followed closely to install the drives safely and correctly.

3. Customization: Using the drives for specific applications could require customized programming, which may require specialized knowledge.

The Cutler-Hammer SVX020A1-A1B1 and SVX020A1-4A1B1 20 AC Drives offer numerous benefits such as energy savings, smooth torque control, quieter operation, versatility, and protection. However, they come with some disadvantages, including higher initial cost and complex installation. It's essential to weigh these factors against the potential long-term benefits and suitability for your specific application when considering a purchase. If energy efficiency, system longevity, and versatility are priorities, the advantages might outweigh the challenges. Reach out to Eaton or a certified vendor for further guidance on selecting the most appropriate model for your particular application.

Details:

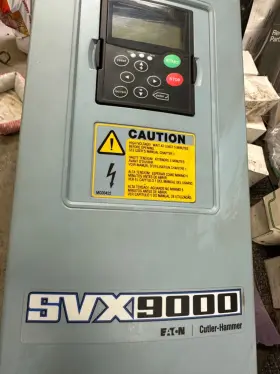

Very clean out of working application, 20 HP, 480 volt, SVX90 couple plastic fin broke as shown in photo.

part #: svx020a1a1b1 prices

• $2200.00-$4203.00

specifications acdrivestream:

• brand: Cutler-hammer
• part type: Ac Hp Drive
• manufacturer part number: SVX020A1-A1B1

shipping acdrivestream:

• transit: 8-12 Days
• type: Fixed
• cost: $80.00
• class: Standard
• service: UPS Ground
• carrier: UPS

general acdrivestream:

• Drives Starters > Drives Motor Controls > General Purpose AC Drives
• condition: Used

payments acdrivestream:

• credit card: Mastercard
• other
• wallet: Google-pay

offer acdrivestream:

• availability: In Stock
• sold: 0
• started: November 10, 2024
• options: Ship-to-home
• quantity: 1
• best offers: True

returns acdrivestream:

• policy: No Returns

seller acdrivestream:

• city: Crescent City, California
• rating: 99.2%
• # reviews: 478
